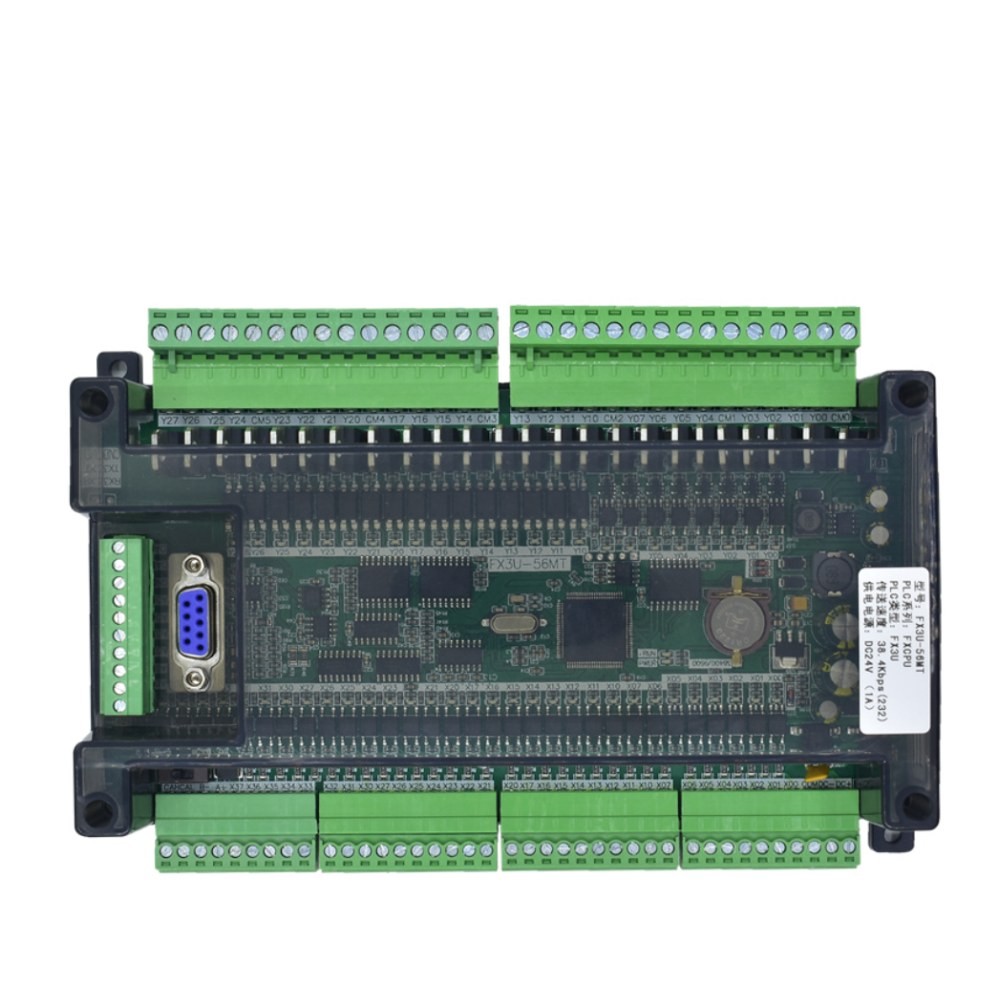

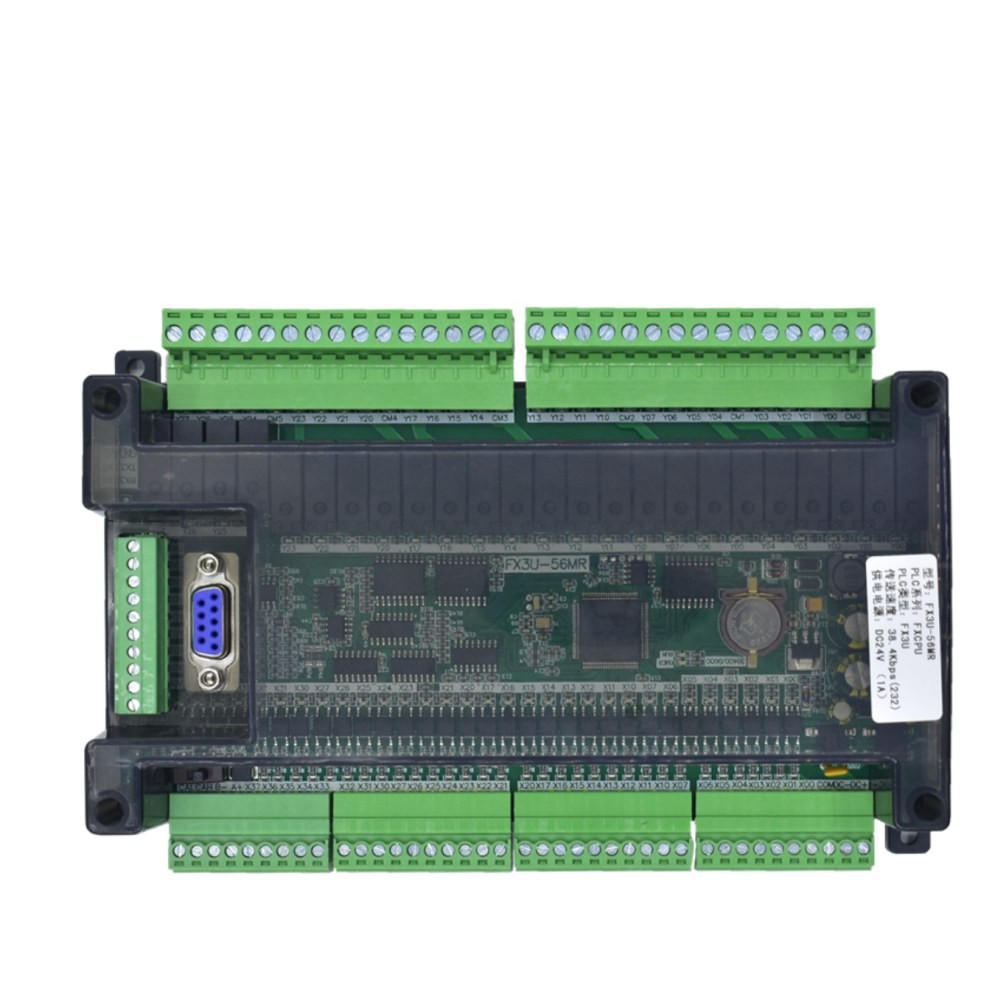

FX3U-56MR 56MT PLC industrial control board Programmable 32 Input 24 Output 6AD 2DA and RTC RS485 Modbus RTU communication

FX3U-56MR 56MT PLC industrial control board Programmable 32 Input 24 Output 6AD 2DA and RTC RS485 Modbus RTU communication

INQUIRY

Product Details

Product Tags

FX3U-56MT FX3U-56MR PLC Tips :

Optional function

RS485: This PLC is RS232 communication by default,if you need RS485 communication,please choose the right option.

RTC: RTC means real time clock.

CAN: CAN means with CAN function.

High speed : 60K

Model	FX3U-14MR	FX3U-14MT	FX3U-24MR	FX3U-24MT	FX3U-30MR
Output type	Relay	Transistor	Relay	Transistor	Relay
Download speed	38.4kb	38.4kb	38.4kb	38.4kb	38.4kb
Memory capacity	8000	8000	8000	8000	8000
Input Voltage	24V 220V	24V DC	24V 220V	24V DC	24V 220V
Output Current	5A	1A	5A	1A	5A
Digital Input Point	8	8	14	14	16
Digital Output Point	6	6	10	10	14
Analog Input	AD0~AD2 0-10V AD3~AD5 0-20MA	AD0~AD2 0-10V AD3~AD5 0-20MA	AD0~AD2 0-10V AD3~AD5 0-20MA	AD0~AD2 0-10V AD3~AD5 0-20MA	AD0~AD2 0-10V AD3~AD5 0-20MA
Analog Output	2DA 0-10V	2DA 0-10V	2DA 0-10V	2DA 0-10V	2DA 0-10V
RS485/RTC	Optional	Optional	Optional	Optional	Optional
MODBUS	Optional	Optional	Optional	Optional	Optional
CAN	/	/	/	/	Optional
Software	GX Developer OR GX Works2

Model	FX3U-32MT	FX3U-48MR	FX3U-48MT	FX3U-56MR	FX3U-56MT
Output type	Transistor	Relay	Transistor	Relay	Transistor
Download speed	38.4kb	38.4kb	38.4kb	38.4kb	38.4kb
Memory capacity	8000	8000	8000	8000	8000
Input Voltage	24V DC	24V 220V	24V DC	24V 220V	24V 220V
Output Current	1A	5A	1A	5A	1A
Digital Input Point	16	24	24	32	32
Digital Output Point	16	24	24	24	24
Analog Input	AD0~AD2 0-10V AD3~AD5 0-20MA	AD0~AD2 0-10V AD3~AD5 0-20MA	AD0~AD2 0-10V AD3~AD5 0-20MA	AD0~AD2 0-10V AD3~AD5 0-20MA	AD0~AD2 0-10V AD3~AD5 0-20MA
Analog Output	2DA 0-10V	2DA 0-10V	2DA 0-10V	2DA 0-10V	2DA 0-10V
RS485/RTC	Optional	Optional	Optional	YES	YES
MODBUS	Optional	Optional	Optional	YES	YES
CAN	Optional	Optional	Optional	YES	YES
Software	GX Developer OR GX Works2
