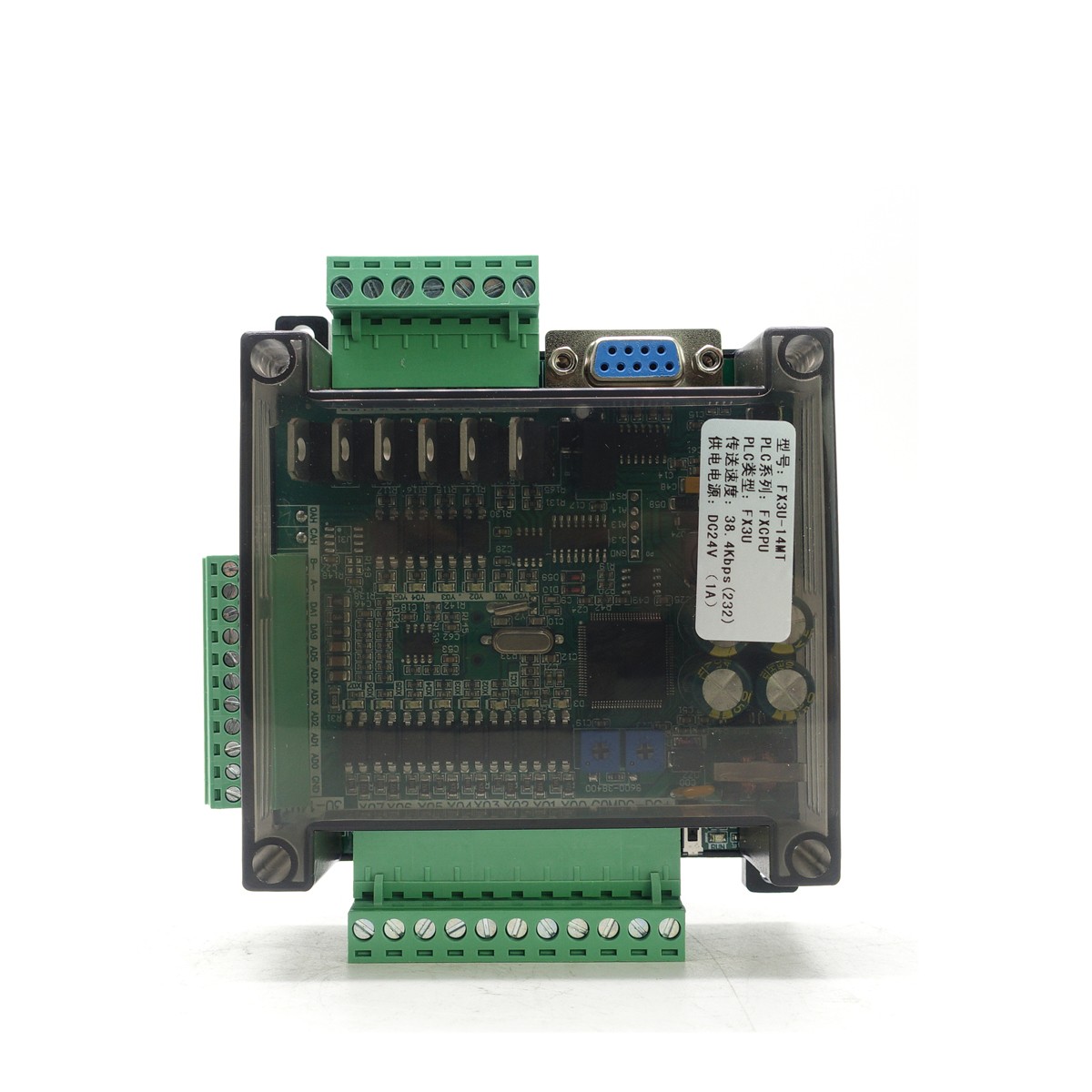

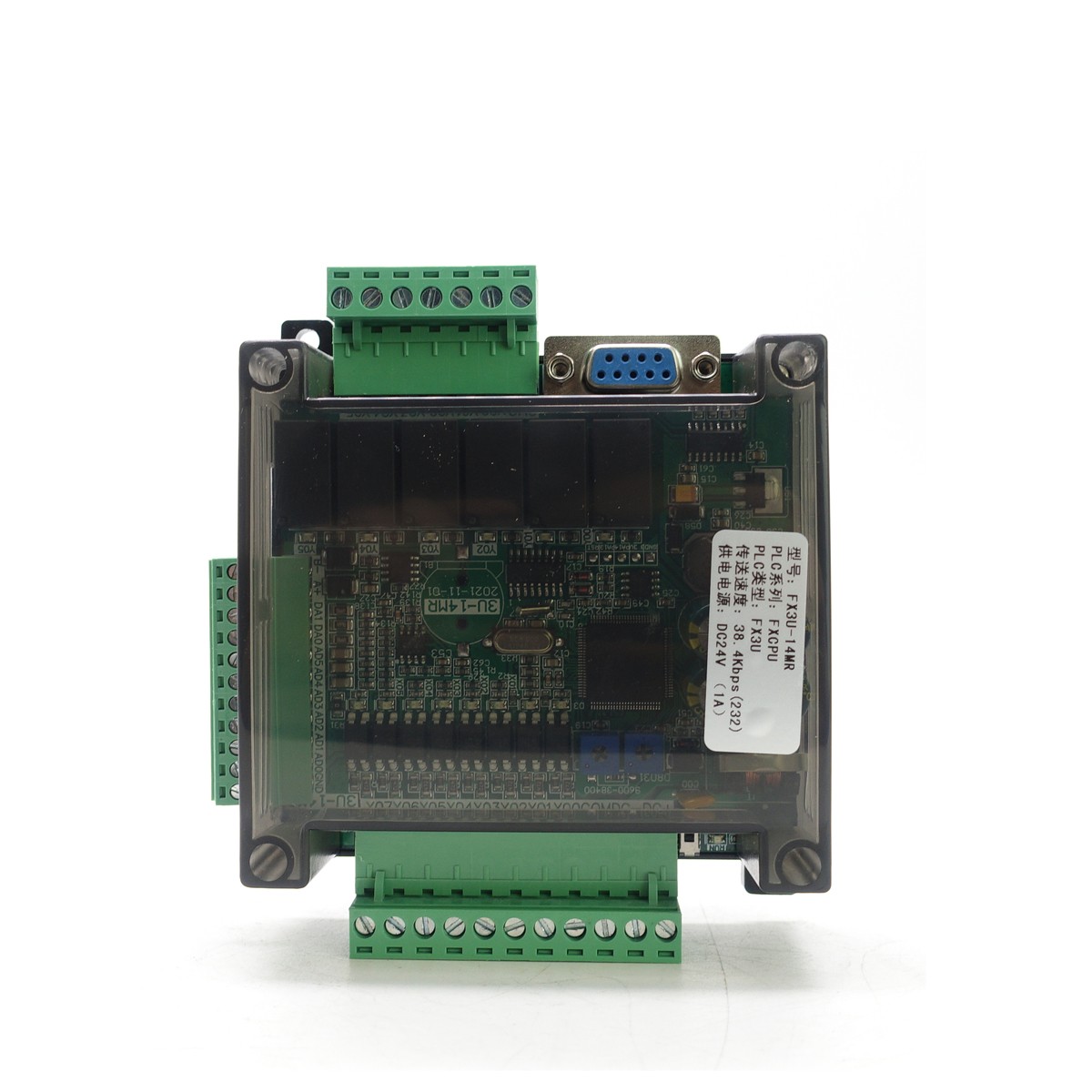

FX3U-14MR/MT PLC Tips :
Optional function

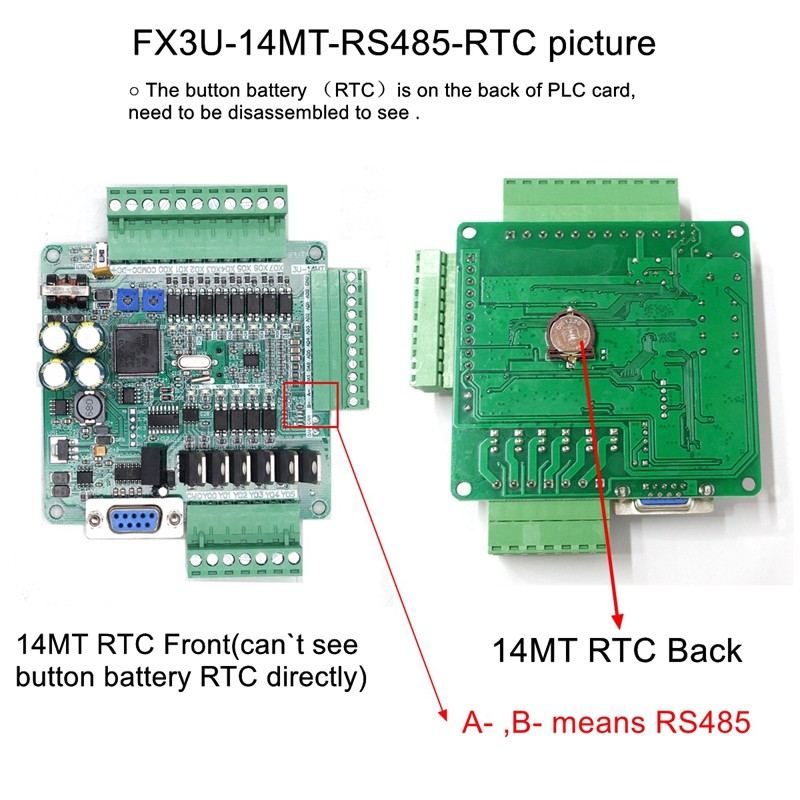

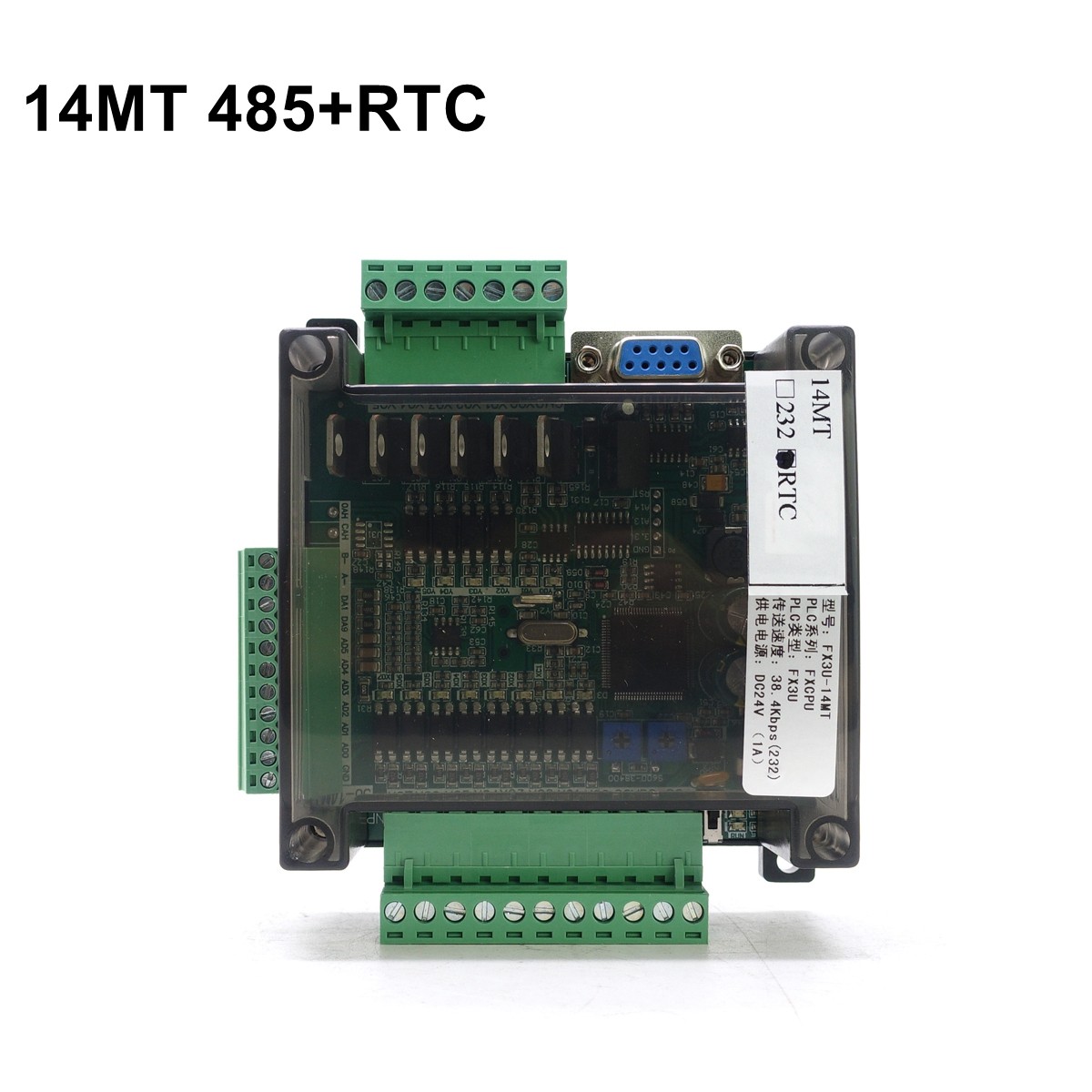

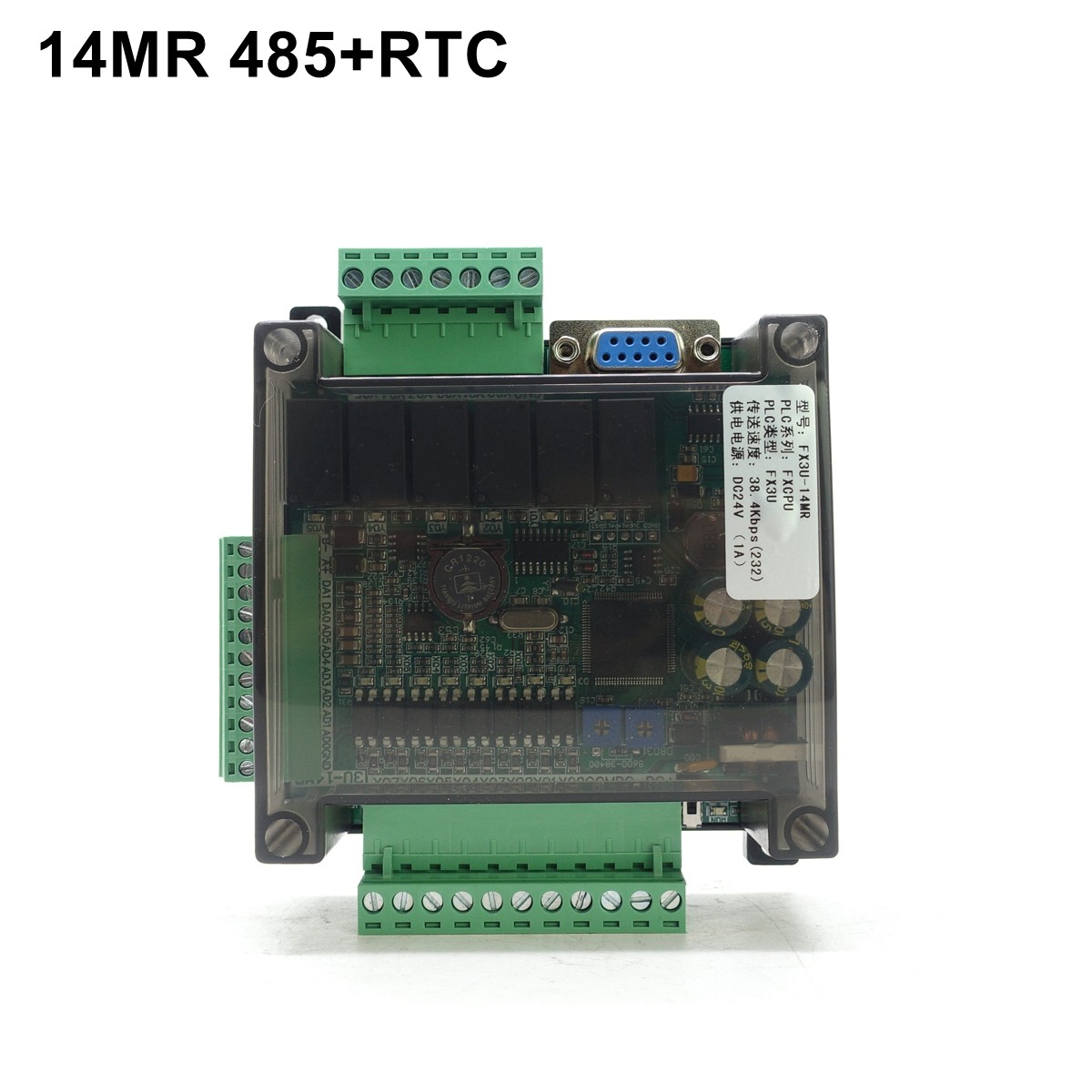

RS485: This PLC is RS232 communication by default,if you need RS485 communication,please choose the right option.
RTC: RTC means real time clock.
| Model | FX3U-14MR | FX3U-14MT | FX3U-24MR | FX3U-24MT | FX3U-30MR |

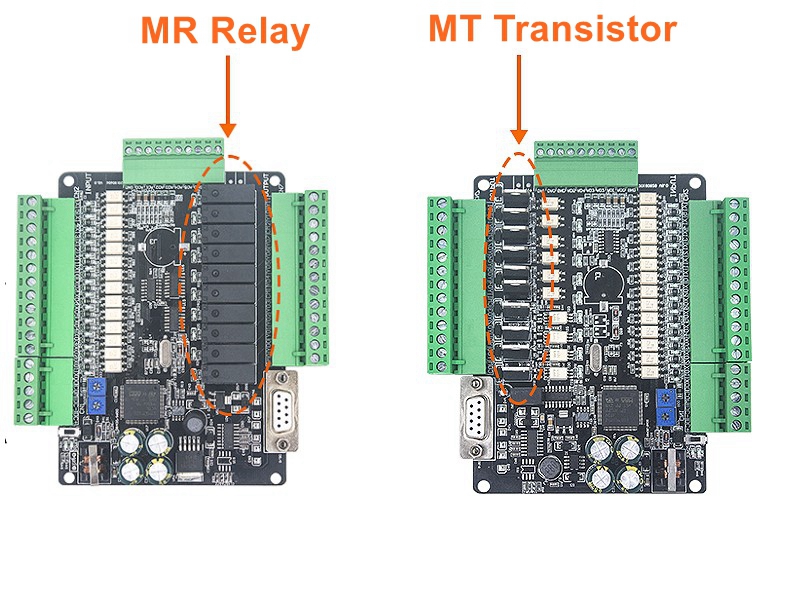

| Output type | Relay | Transistor | Relay | Transistor | Relay |
| Download speed | 38.4kb | 38.4kb | 38.4kb | 38.4kb | 38.4kb |
| Memory capacity | 8000 | 8000 | 8000 | 8000 | 8000 |
| Input Voltage | 24V 220V | 24V DC | 24V 220V | 24V DC | 24V 220V |
| Output Current | 5A | 1A | 5A | 1A | 5A |
| Digital Input Point | 8 | 8 | 14 | 14 | 16 |
| Digital Output Point | 6 | 6 | 10 | 10 | 14 |
| Analog Input | AD0~AD2 0-10V AD3~AD5 0-20MA | AD0~AD2 0-10V AD3~AD5 0-20MA | AD0~AD2 0-10V AD3~AD5 0-20MA | AD0~AD2 0-10V AD3~AD5 0-20MA | AD0~AD2 0-10V AD3~AD5 0-20MA |
| Analog Output | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V |
| RS485/RTC | Optional | Optional | Optional | Optional | Optional |
| MODBUS | Optional | Optional | Optional | Optional | Optional |
| CAN | / | / | / | / | Optional |
| Software | GX Developer OR GX Works2 | ||||
| Model | FX3U-32MT | FX3U-48MR | FX3U-48MT | FX3U-56MR | FX3U-56MT |
| Output type | Transistor | Relay | Transistor | Relay | Transistor |
| Download speed | 38.4kb | 38.4kb | 38.4kb | 38.4kb | 38.4kb |
| Memory capacity | 8000 | 8000 | 8000 | 8000 | 8000 |
| Input Voltage | 24V DC | 24V 220V | 24V DC | 24V 220V | 24V 220V |
| Output Current | 1A | 5A | 1A | 5A | 1A |
| Digital Input Point | 16 | 24 | 24 | 32 | 32 |
| Digital Output Point | 16 | 24 | 24 | 24 | 24 |
| Analog Input | AD0~AD2 0-10V AD3~AD5 0-20MA | AD0~AD2 0-10V AD3~AD5 0-20MA | AD0~AD2 0-10V AD3~AD5 0-20MA | AD0~AD2 0-10V AD3~AD5 0-20MA | AD0~AD2 0-10V AD3~AD5 0-20MA |
| Analog Output | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V | 2DA 0-10V |
| RS485/RTC | Optional | Optional | Optional | YES | YES |
| MODBUS | Optional | Optional | Optional | YES | YES |
| CAN | Optional | Optional | Optional | YES | YES |
| Software | GX Developer OR GX Works2 | ||||
Description :
